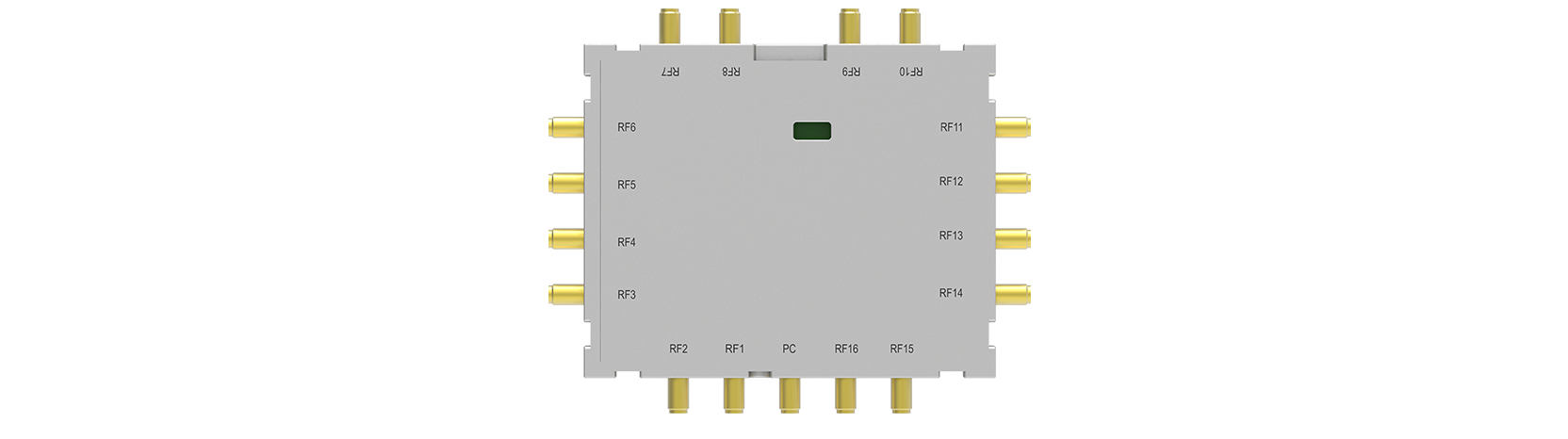

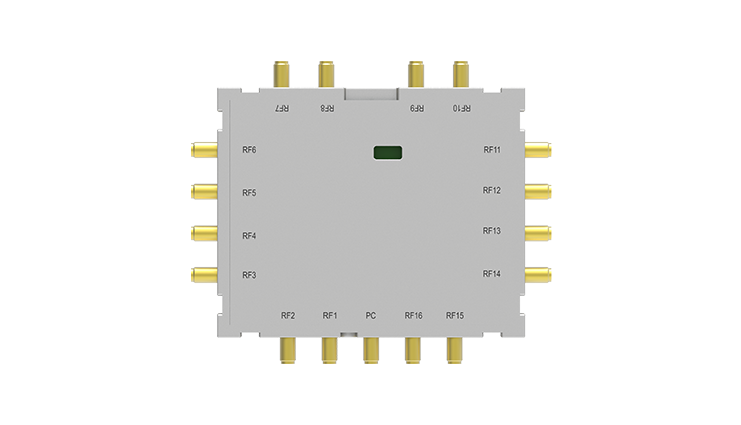

S-16T射频开关

新一代射频开关

S-16T
产品特点

16个独立可控的射频端口

不同射频通道间灵活切换

同时处理多个频段
频率范围广泛

0.05GHz-8GHz
超低插入损耗、超高隔离度和超低开关时间
协同综测仪使用

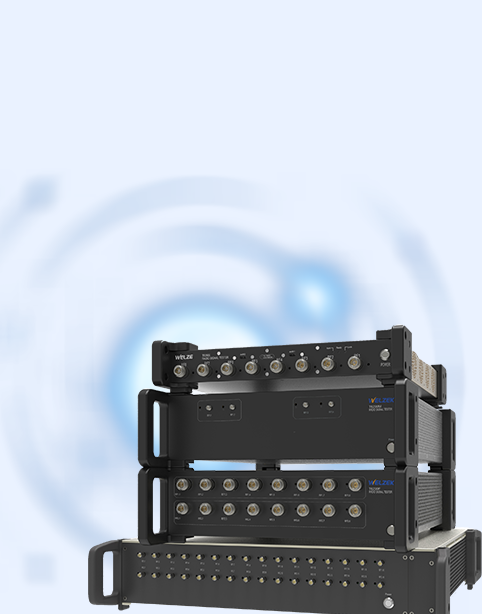

连接T6290系列综测仪

扩展测试端口
基本参数
RF Frequency
0.05-8GHz
INSERTION LOSS
<3.0 dB (0.05GHz-2.40GHz)
<4.0 dB (2.40GHz-5.80GHz)
<5.0 dB (5.80GHz-8.00GHz)
Return Loss （Common port）
< -15dB
Return Loss （Output port）
< -15dB
ISOLATION
>60dB
